Maico 490 Top End Engine Parts

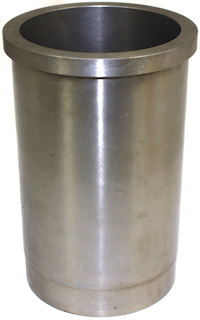

Maico 490 Cylinder Sleeve Blank
This is a blank cylinder Sleeve To Fit The Maico 490 Cylinder.

This is a sleeve to fit a maico 490 air-cooled cylinder, it comes blank with no ports in there so you will have to cut them in to suit your cylinder.

The Sleeve is made in-house by us, it has a ground finish on the outside and the bore is undersize to allow it to be bored to std size when fitted into the cylinder.

Price: £92.50 (£111.00 Including VAT at 20%)

Quantity:

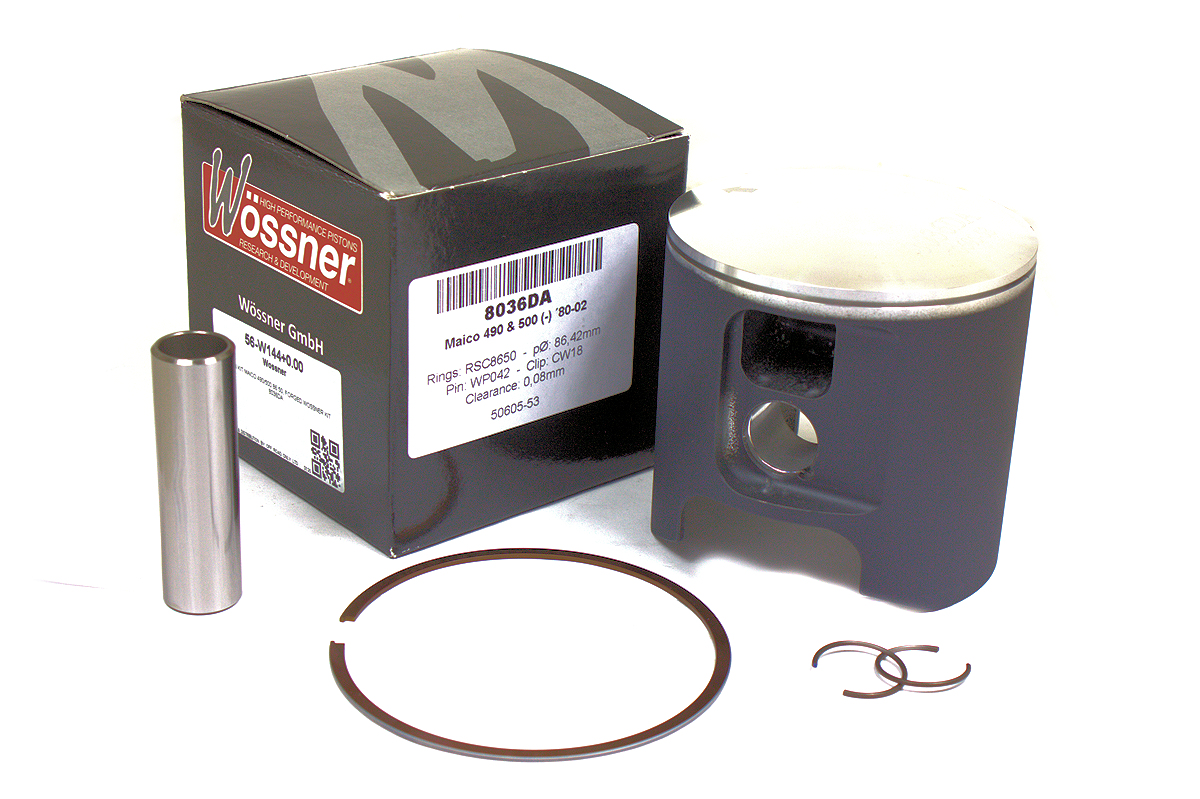

Maico 490 Piston Kit Wossner
Wossner Piston Kit For The Maico 490 All Years Inc MC490 / G490

Piston kit contains piston, piston ring, gudgeon pin and 2 circlips.

Standard Bore Size For The Maico Is 86.50mm, The Cylinder Comes Fitted With A Cast-iron Sleeve Fitted From Maico So Can Be Re-Bored. Please Measure Your Cylinder To See What Size Piston You Require And Choose From The Drop Down List

Please Note: Not All Sizes Are Kept In Stock So Delivery Times Can Not Be Guaranteed

Wössner pistons are manufactured from a high yield 4032 alloy which has low expansion under temperature. This allows closer piston to bore clearances reducing piston noise. Wössner pistons also feature a unique graphite based coating on the skirts which aids the bedding in procedure.

The Piston is a Forged Piston
