Yamaha TDR250 Engine Parts Bottom End



Yamaha TDR250 Big End Bearing TZ Style

Yamaha TDR250 Big End Bearing TZ Style

TZ Style Replacement Big End Bearing To Fit The Yamaha TDR 250 All Models.

This is flat bar cage bearing as used on TZ cranks, these have 16 rollers instead of the 14 on the standard

bearing.

Price is for 1 Bearing

Replaces Yamaha Part Number 93310-523D2, 93310-42231 & 93310422L0
Price: 18.75 (22.50 Including VAT at 20%)


Quantity:






Yamaha TDR 250 Con Rod Kit

Yamaha TDR 250 Con Rod Kit

Yamaha TDR 250 Con rod, Big end Bearing, Thrust washers and small end bearing

Price is for one Con Rod Kit

This Con Rod Is Made In Japan By "Long" Long makes con rod kits for Yamaha, Suzuki Etc. Long also make con rods for Prox. They are a qualty item and we have been running "Long" brand rods in race motors for years.


A:29.00mm B: 21.00mm C: Con Rod Length 105mm D: 17.00mm E:17.00mm F: N/A G: N/A

This Connecting Rod Kit Will Fit The Yamaha TDR 250 1KT TDR 240 TZR 250 2MA TZR 250

Replaces Yamaha Part Number Conrod 1KT-11651-00 4FU1165100 Big End Bearing 93310-522L4 93310523D2 Thrust Washers 90209-22292 9020922257


Upgrade Your Big End Bearing

Type
Type
None
TZ Style Big End Bearing (+10.00)
None I Will Use The Std Big End (+0.00)





Price: 37.50 (45.00 Including VAT at 20%)



Quantity:






Yamaha TDR250 Crankshaft Thrust Washers

Yamaha TDR250 Crankshaft Thrust Washers

Pair Of Thrust Washers To Fit The Yamaha TDR250 All Years

Price Is For 2 Crankshaft Thrust Washers That Fit Either Side Of The Big End Bearing On The Yamaha TDR 250

Replaces Yamaha Part Numbers 90209-22292 & 90209-22257


Price: 9.00 (10.80 Including VAT at 20%)


Quantity:






Yamaha TDR 250 Crankshaft Oil Seals

Yamaha TDR 250 Crankshaft Oil Seals

Crankshaft Oil Seals For The Yamaha TDR250 1KT

Price is for a pair of seals 1 LH and 1 RH
Price: 19.13 (22.96 Including VAT at 20%)



Quantity:






Yamaha TDR 250 Genuine Crank Seals

Yamaha TDR 250 Genuine Crank Seals

Set of 2 Genuine Yamaha TDR250 Crankshaft Seals.

Price is for the pair one drive side and one timing side seal.

Yamaha Part Number: 93103-25108 & 93103-35149

Our Part Number 822-1


Price: 32.97 (39.56 Including VAT at 20%)


Quantity:

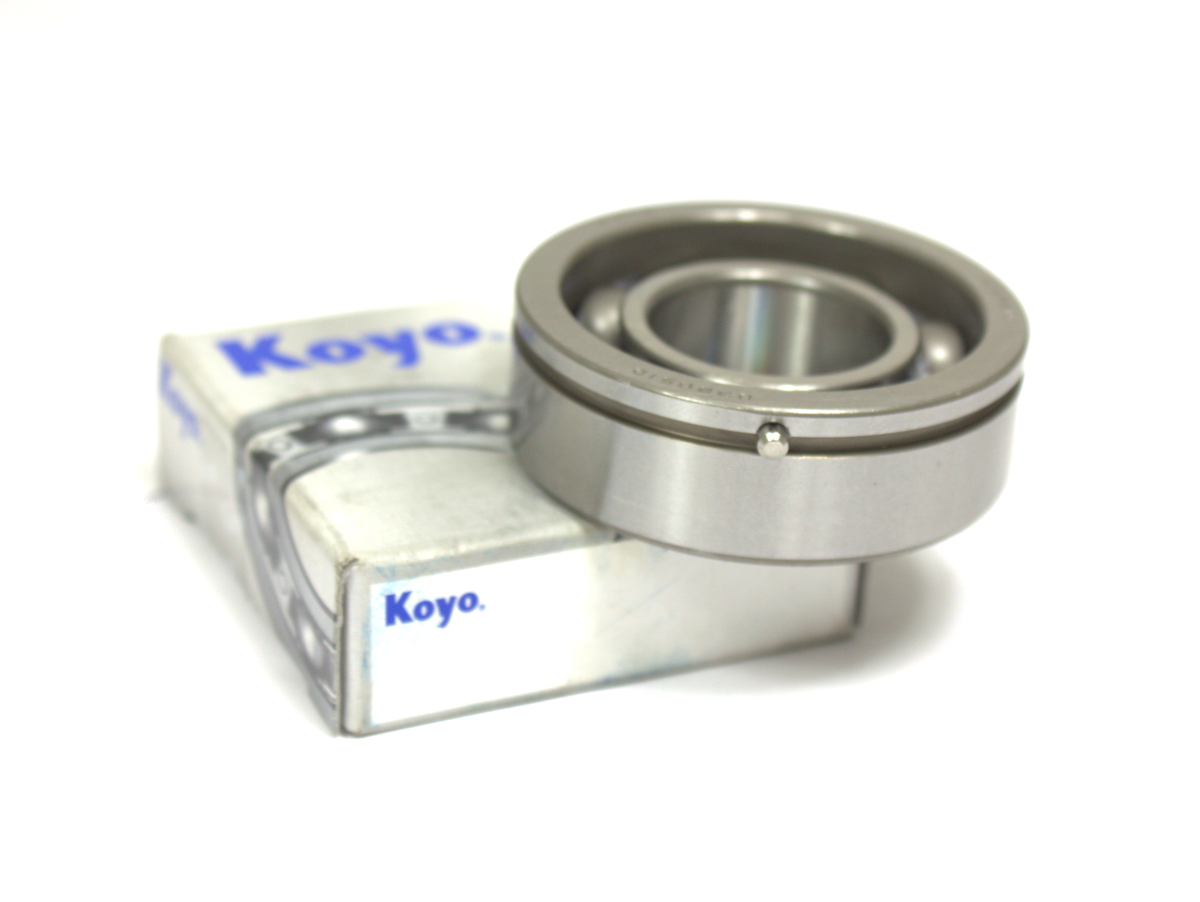

Yamaha TDR250 Crankshaft Outer Main Bearings

Yamaha TDR250 Crankshaft Outer Main Bearings

Pair Of Outer Main Crankshaft Bearings For The Yamaha TDR250 2MA / 1KT

Made By Koyo In Japan
Price: 35.88 (43.06 Including VAT at 20%)



Quantity:






Yamaha TDR250 Crankshaft Main Bearings

Yamaha TDR250 Crankshaft Main Bearings

Set Of 4 Main Crankshaft Bearings For The TDR250

2 Centre Bearings And 2 Outer Bearings

Made By Koyo In Japan
Price: 73.68 (88.42 Including VAT at 20%)



Quantity:

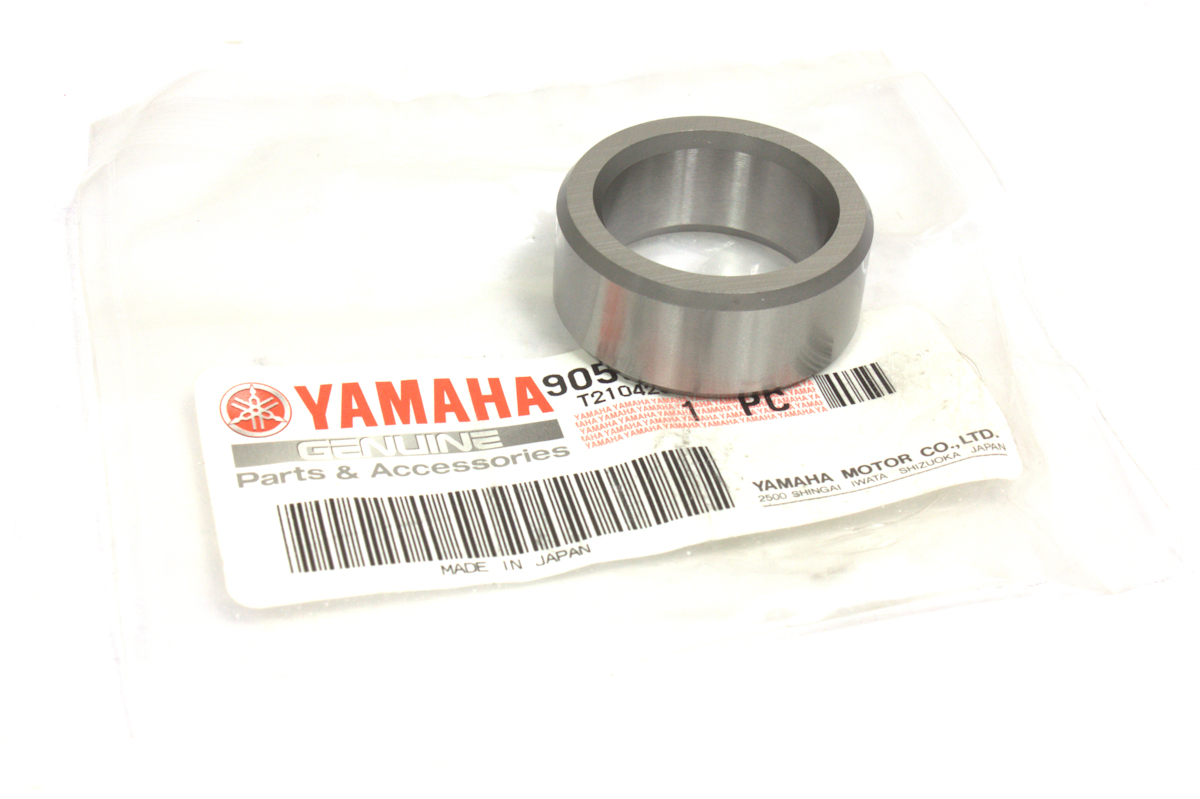

Yamaha TDR 250 CENTRE SHAFT

Yamaha TDR 250 CENTRE SHAFT

TDR 250 Centre shaft for the crankshaft.

This is the part where the centre bearings and labrynth seal run on
Price: 11.42 (13.70 Including VAT at 20%)



Quantity:






Yamaha TDR 250 Centre Labrynth Seal

Yamaha TDR 250 Centre Labrynth Seal

TDR 250 centre Labrynth seal
Price: 12.99 (15.59 Including VAT at 20%)



Quantity:






Yamaha TDR250 Crankshaft Centre Assembly

Yamaha TDR250 Crankshaft Centre Assembly

Yamaha TDR250 Crankshaft Centre Section To Fit The TDR250 1KT 2MA Engine

As you can see by the photos it comes ready built with 2 new inner webs, 2 main bearings, centreshaft, lab seal and built on an indexing jig to ensure the webs are accurately aligned at 180° ° We are offering this for customers to build their own crank as it is very hard to get the 2 inner webs built up.


Price: 144.71 (173.65 Including VAT at 20%)


Quantity:






Yamaha TDR 250 Fly Wheel Web And Pin

Yamaha TDR 250 Fly Wheel Web And Pin

TDR 250 Flywheel Web And Pin.

These are often needed during a crankshaft rebuild, as the crank pin is integral part of the flywheel web and wears the same as the con rod.

Price is for 1Web
Price: 41.25 (49.50 Including VAT at 20%)



Quantity:

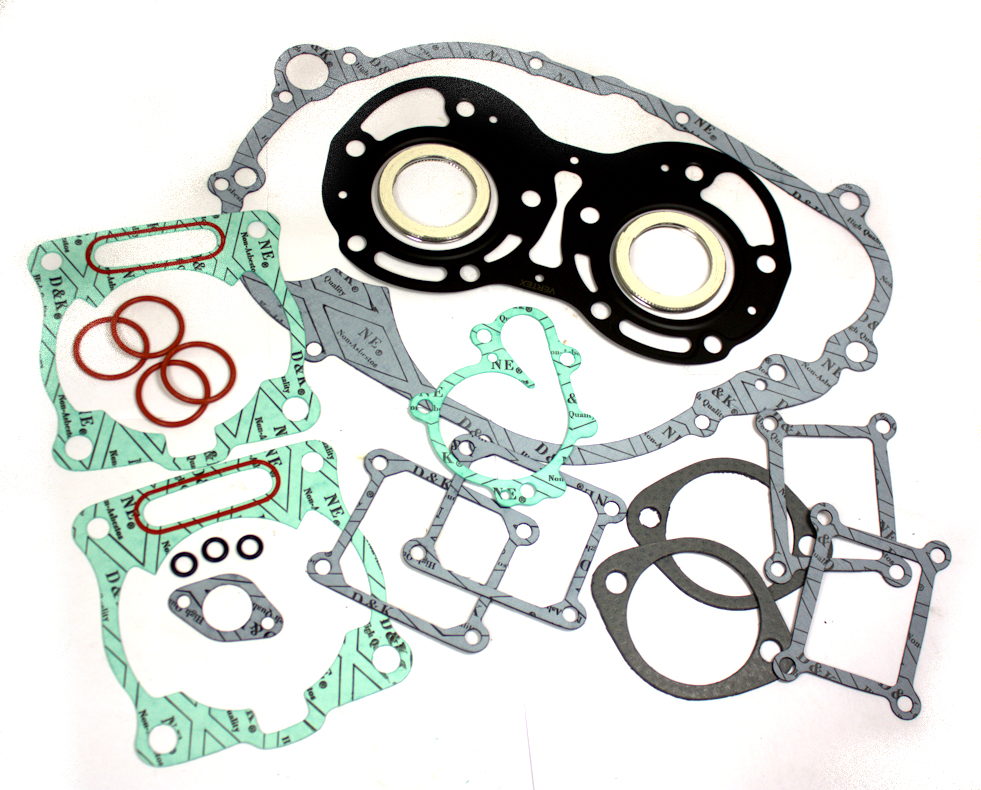

Yamaha TDR 250 Full Gasket Set Budget

Yamaha TDR 250 Full Gasket Set Budget

Full Gasket Kit To Fit The Yamaha TDR250 1KT Engine Budget Kit

All the gaskets your require to strip and rebuild your engine are in this kit.

Made In Taiwan
Price: 21.38 (25.66 Including VAT at 20%)



Quantity:






Yamaha TDR250 Athena Full Gasket Set

Yamaha TDR250 Athena Full Gasket Set

Full Gasket Kit For The Yamaha TDR250 1KT Engine.

This Kit Is Made In Italy By Athena And Is A Better Quality One Than The Budget One We Sell Which Is Made In Taiwan. "Why is it better i hear you say" Well the gaskets are made in Italy by Athena who makes gaskets for Aprilia, Ducati, Cagiva Etc so the quality is excellent. The gasket material is better than the Taiwanese we sell and fits much nicer.
Price: 28.98 (34.78 Including VAT at 20%)



Quantity:




People who bought this item also bought:
1. Oil Pipe 3mm x 5mm Clear
2. Oil Pipe 2mm x 5mm Black



Yamaha TDR250 Athena Clutch Cover Gasket

Yamaha TDR250 Athena Clutch Cover Gasket

Clutch Cover Gasket For The Yamaha TDR250

Replaces Genuine Yamaha Part Numbers 1KT1546100 And 1KT1546101

Athena Quality Gasket Made In Italy
Price: 4.99 (5.99 Including VAT at 20%)


Quantity:






Yamaha TDR250 Sprocket Seal

Yamaha TDR250 Sprocket Seal

Sprocket Output Shaft Oil Seal For The Yamaha TDR250

Genuine Yamaha Part 93102-35426


Price: 8.54 (10.25 Including VAT at 20%)



Quantity:






Yamaha TDR250 Water Pump Seal Budget

Yamaha TDR250 Water Pump Seal Budget

Water Pump Seal To Fit The Yamaha TDR250

Replaces Yamaha Part Number 93103 10168 & 93103 10147

This Is A Budget Aftermarket Water Pump Seal

Made In Taiwan
Price: 12.50 (15.00 Including VAT at 20%)


Quantity:




People who bought this item also bought:
1. Yamaha RD350LC Small End Bearing
2. Yamaha RD350LC Piston Kit Mitaka
3. Derbi GPR 125 Main Carb JET



Customer Reviews

  Water pump seal   Much cheaper the main dealer and faster delivery Top Qualty   (03/12/2012) -



Yamaha TDR250 Water Pump Seal Genuine Made In Japan

Yamaha TDR250 Water Pump Seal Genuine Made In Japan

Water Pump Seal To Fit The Yamaha TDR250 TDR 250

This Is A Genuine Yamaha Part Made In Japan By ARS. It Comes Pre Greased And With The Correct Stainless Steel Springs Unlike The Pattern / Budget Ones.

Yamaha Part Number 93103 10168 & 93103 10147


Price: 19.13 (22.96 Including VAT at 20%)


Quantity:






Yamaha TDR250 Gear Change Shaft Seal

Yamaha TDR250 Gear Change Shaft Seal

Gear Change Shaft Seal For The Yamaha TDR250
Price: 1.99 (2.39 Including VAT at 20%)



Quantity:






Yamaha TDR250 Kick Start Shaft Seal

Yamaha TDR250 Kick Start Shaft Seal


Price: 2.90 (3.48 Including VAT at 20%)



Quantity:






Yamaha TDR250 Clutch Plates 2MA

Yamaha TDR250 Clutch Plates 2MA

Set Of EBC Friction Clutch Plates To Fit The Yamaha TDR250 2MA 1987-1992
Price: 42.90 (51.48 Including VAT at 20%)


Quantity:






Yamaha TDR250 Heavy Duty Clutch Springs

Yamaha TDR250 Heavy Duty Clutch Springs

Up- Rated Clutch Springs For The Yamaha TDR250 2MA 1987-1992
Price: 7.99 (9.59 Including VAT at 20%)


Quantity:






Japanese Flywheel Puller

Japanese Flywheel Puller

Flywheel Puller To Remove The Ignition Rotor From The RD125LC RD350LC RD350 YPVS, RD500, TZR125

Also Fits Most Japanese Engines
Price: 8.50 (10.20 Including VAT at 20%)


Quantity:




People who bought this item also bought:
1. Yamaha RD350 YPVS Gearbox Bearing LH Input
2. Yamaha RD350 YPVS Gearbox Bearing RH Input
3. Yamaha RD350 YPVS Gear Change Shaft Seal
