Yamaha RD125LC Engine Parts Bottom End



Yamaha RD125LC Con Rod Kit

Yamaha RD125LC Con Rod Kit

Con rod kit to fit the Yamaha RD125LC MK1 & MK2 But Not The MK3 Power Valve.

Kit contains con-rod, crank pin, big end cage, big end rollers, 2 thrust washers and small end bearing

This Con Rod Kit Is Made In Japan By "Long" Long makes con rod kits for Yamaha, Suzuki Etc They are a qualty item and we have been running "Long" brand rods in race motors for years.

Con Rod Length Is 105mm Centre To Centre


Price: 37.50 (45.00 Including VAT at 20%)



Quantity:

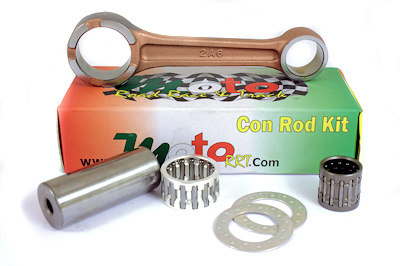

Yamaha RD125LC MK3 YPVS Con Rod Kit

Yamaha RD125LC MK3 YPVS Con Rod Kit

Con Rod Kit To Fit The Yamaha RD125LC Mk3 Note The MK3 YPVS Engine Uses a 110mm Long Con Rod Kit

This Is A Moto R.R.T Con Rod Kit Made For The Yamaha RD 125LC MK3 YPVS .

This Is A High Quality Race Type Part.

The Rod Is Made From Chrome Molybdenum Steel Double Forded And Shot Peened For Better Strength And Reliability. The Crank Pin Is Manufactured From Hot Rolled Case Hardened Steel And The Thrust Washers Are Made From Silver Coated Phosphor Bronze And Befit From Having Dimples In Their Faces Which Improves Oil Retention To The Big End Bearing. The Big End Bearing Is Silver Plated With Race Type Cage.

Please Don't Confused This Con Rod Kit With The Lower Quality Conrod Kits Sold On Auction Sites!

Kit Contains Con-Rod, Crank Pin, Big End Cage, Big End Rollers, 2 Thrust Washers And Small End Bearing


A:28.00mm B: 20.00mm C: Con Rod Length 110mm D: 16.00mm E:16.00mm F:22.00mm G:54.00

This Part Will Also Fit The Following Model Bikes.

Yamaha RD125LC MK3 YPVS RDZ125 LC Mk3 Yamaha DT125LC Mk3 YPVS


Price: 45.00 (54.00 Including VAT at 20%)



Quantity:






Yamaha RD125LC Crankshaft Thrust Washers

Yamaha RD125LC Crankshaft Thrust Washers

Pair Of Thrust Washers To Fit The Yamaha RD 125LC All Years MK1 Mk2 And Mk2 YPVS

Price Is For 2 Crankshaft Thrust Washers That Fit Either Side Of The Big End Bearing On The Yamaha RD 125LC

Replaces Yamaha Part Numbers 90209-22292 & 90209-22257


Price: 9.00 (10.80 Including VAT at 20%)


Quantity:






Yamaha RD125LC Crank Tab Washer

Yamaha RD125LC Crank Tab Washer

Crankshaft Tab Washer To Fit The Yamaha RD125LC All Years.

Yamaha Part Number 90215-12272


Price: 4.20 (5.04 Including VAT at 20%)


Quantity:






Yamaha RD125LC Big End Bearing TZ Style

Yamaha RD125LC Big End Bearing TZ Style

TZ Style Replacement Big End Bearing To Fit The Yamaha RD125LC All Models Inc MK3 YPVS

This is flat bar cage bearing as used on TZ cranks, these have 18 rollers instead of the 14 on the standard

bearing.

Price is for 1 Bearing

Replaces Yamaha Part Number 93310-523D2, 93310-42231 & 93310422L0
Price: 18.75 (22.50 Including VAT at 20%)


Quantity:






Yamaha RD125LC Engine Oil Seal Kit

Yamaha RD125LC Engine Oil Seal Kit

Engine Oil Seak Kit For The Yamaha RD125LC

2 Crank Seals,1 Sproket Seal ,1 Gear Shaft Seal And 1 Kick Start Shaft Seal.

Fits All Years Of The RD 125LC


Price: 14.16 (16.99 Including VAT at 20%)



Quantity:






Yamaha RD125LC Crankshaft Oil Seals

Yamaha RD125LC Crankshaft Oil Seals

Pair Of Crankshaft Oil Seals To Fit The Yamaha RD125LC MK1 Mk2 & Mk3

Price is for a pair of crank shaft oil seals

Just click (add to basket)
Price: 9.77 (11.72 Including VAT at 20%)



Quantity:






Yamaha RD125LC Water Pump Seal

Yamaha RD125LC Water Pump Seal

Water Pump Seal To Fit The Yamaha RD125LC

Replaces Yamaha Part Number 93103 10168 & 93103 10147
Price: 12.50 (15.00 Including VAT at 20%)


Quantity:




People who bought this item also bought:
1. Yamaha RD350LC Head Gasket Athena
2. Yamaha RD 350LC Complete Crankshaft Assembly
3. 3BN1118102 Yamaha Head Gasket DT125R, TZR125R Etc



Customer Reviews

  Water pump seal   Much cheaper the main dealer and faster delivery Top Qualty   (03/12/2012) -



Yamaha RD125LC Clutch Arm Seal

Yamaha RD125LC Clutch Arm Seal

Clutch Arm Seal To Fit The Yamaha RD125LC All Years MK 1, 2 And MK3

Replaces Yamaha Part Number 9310414059 And 93104-14004
Price: 3.25 (3.90 Including VAT at 20%)


Quantity:






Yamaha RD125LC Sprocket Shaft Seal

Yamaha RD125LC Sprocket Shaft Seal

Yamaha Sprocket Shaft Seal To Fit The Yamaha RD125LC All Years Inc MK1 2 And 3 Of The RD 125LC

Replaces Yamaha Part Number 93102-20143


Price: 1.95 (2.34 Including VAT at 20%)


Quantity:






Yamaha RD125LC Gear Change Shaft Seal

Yamaha RD125LC Gear Change Shaft Seal

Gear Change Shaft Seal To Fit The Yamaha RD125LC

Fits All Years Of The RD125LC Mk1 2 And 3 Inc MK3 YPVS.

Replaces Yamaha Part Number 9310112173 And 93101-12060
Price: 1.99 (2.39 Including VAT at 20%)



Quantity:






Yamaha RD125LC Crankshaft Main Bearings

Yamaha RD125LC Crankshaft Main Bearings

Pair Of Crankshaft Main Bearings To Fit The Yamaha DT125LC MK1 MK2 & Mk3

Price is for a pair of main bearings, Just click (add to basket)


Price: 13.62 (16.34 Including VAT at 20%)



Quantity:






Yamaha RD125LC Balance Shaft Bearings

Yamaha RD125LC Balance Shaft Bearings

Pair Of Balance Shaft Bearing To Fit The Yamaha RD125LC
Price: 13.98 (16.78 Including VAT at 20%)



Quantity:






Yamaha RD125LC LH Gear Box Roller Bearing

Yamaha RD125LC LH Gear Box Roller Bearing

LH Roller Bearing To Fit The Yamaha RD125 LC

This Bearing Fits In The Left Hand Case On The Input Shaft.

Bearing Size Is 24-15-10

Number 9 on the diagram below

Genuine Yamaha Part 93311 41530


Price: 20.28 (24.34 Including VAT at 20%)


Quantity:






Yamaha RD125LC Gear Box Bearing

Yamaha RD125LC Gear Box Bearing

Bearing To Fit The Yamaha RD125 LC

Bearing Size Is

Number 23 on the diagram below

Genuine Yamaha Part 93306-20468 Replaces 93306-20453


Price: 24.92 (29.90 Including VAT at 20%)


Quantity:






Yamaha RD125LC RH Gear Box Roller Bearing

Yamaha RD125LC RH Gear Box Roller Bearing

RH Roller Bearing To Fit The Yamaha RD125 LC

This Bearing Fits In The Right Hand Case On The Output Shaft.

Bearing Size Is 25-15-12

Number 22 on the diagram below

Genuine Yamaha Part 93311-31567


Price: 21.90 (26.28 Including VAT at 20%)


Quantity:






Yamaha RD125LC RH Gearbox Bearing

Yamaha RD125LC RH Gearbox Bearing

RH Bearing To Fit The Yamaha RD125 LC

Bearing Size Is

Number 8 on the diagram below

Genuine Yamaha Part 93306-30317 Replaces 93306-30309


Price: 18.17 (21.80 Including VAT at 20%)


Quantity:






Yamaha RD125LC Full Gasket Budget Type

Yamaha RD125LC Full Gasket Budget Type

Full Gasket Kit To Fit The Yamaha RD125LC MK1 & Mk2 But Not The MK3 Powervalve

Budget Type Made In Taiwan


Price: 12.50 (15.00 Including VAT at 20%)



Quantity:






Yamaha RD125LC Full Gasket Athena Quality

Yamaha RD125LC Full Gasket Athena Quality

Athena Full Gasket Kit To Fit The Yamaha RD125LC MK1 & Mk2 But Not The MK3 Powervalve

This Kit Contains A Composite Fibre Type Head Gasket Just Like The Original Yamaha One Used To Be. A Composite Gasket Is Better At Sealing Than The Multilayer Steel Type One That Yamaha Now Sell.

This Kit Is Made In Italy By Athena And Is A Better Quality One Than The Budget One We Sell Which Is Made In Taiwan. "Why is it better i hear you say" Well the gaskets are made from the same materiel & in the same factory as the original yamaha ones, the gasket material is better than the Taiwanese one and fits much nicer.

Made In Italy By Athena


Price: 21.50 (25.80 Including VAT at 20%)



Quantity:

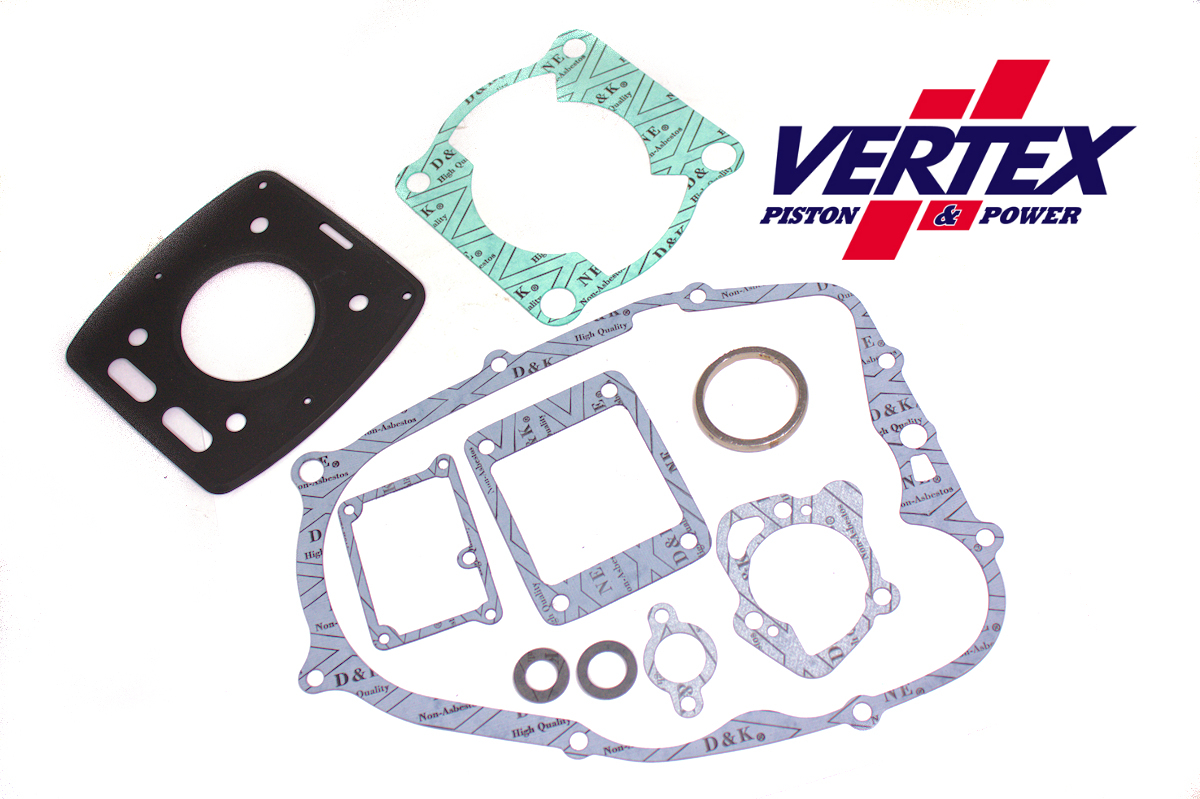

Yamaha RD125LC YPVS Full Gasket Set Budget Type

Yamaha RD125LC YPVS Full Gasket Set Budget Type

Full Gasket Kit To Fit The Yamaha RD125LC MK3 YPVS

Gasket Kit To Do A Full Engine Rebuild

Made In Taiwan


Price: 15.50 (18.60 Including VAT at 20%)



Quantity:






Yamaha RD125LC YPVS Full Gasket Kit Athena Quality

Yamaha RD125LC YPVS Full Gasket Kit Athena Quality

Full Gasket Kit To Fit The Yamaha RD125LC MK3 YPVS Top Quality Athena Gasket Set For The RDZ125 RD125LC Mk3

This Kit Is Made In Italy By Athena And Is A Better Quality One Than The Budget One We Sell Which Is Made In Taiwan. "Why is it better i hear you say" Well the gaskets are made from the same materiel & in the same factory as the original yamaha ones, the gasket material is better than the Taiwanese one and fits much nicer.

Made In Italy By Athena


Price: 21.50 (25.80 Including VAT at 20%)



Quantity:






Yamaha RD125LC Oil pump Cover gasket

Yamaha RD125LC Oil pump Cover gasket

Yamaha RD 125 LC Oil pump Cover Gasket Fits The MK3 RD 125 LC YPVS Model 2HK 1GU

Genuine Yamaha Part Numbers 10V-15456-00 10V-15456-01


Price: 3.41 (4.09 Including VAT at 20%)


Quantity:

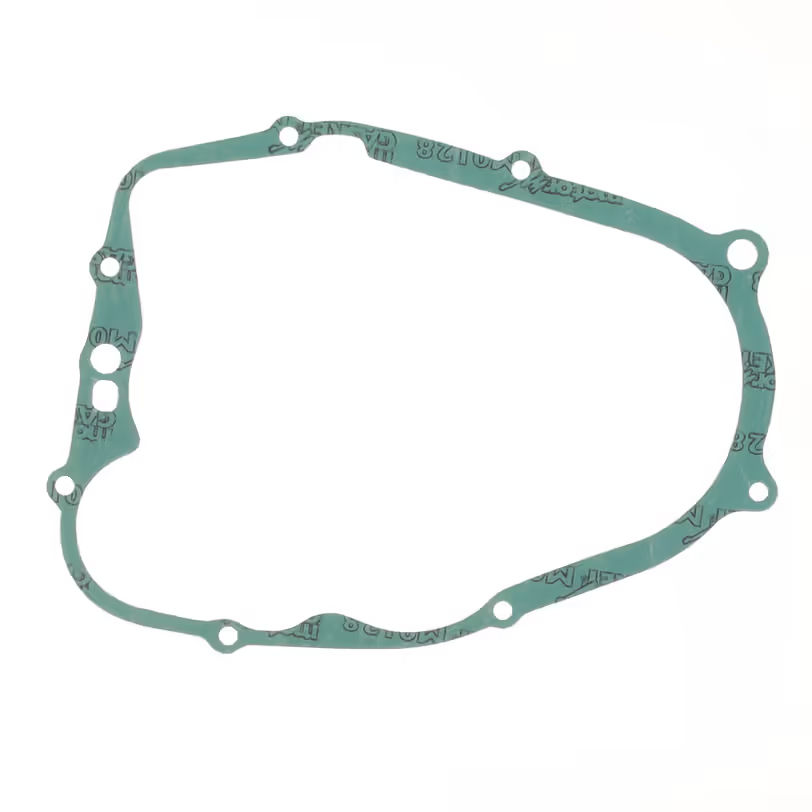

Yamaha RD125LC Clutch Cover Gasket

Yamaha RD125LC Clutch Cover Gasket

Replacement Clutch Cover Gasket To Fit The Yamaha RD125LC Fits All Years

Made In Itlay By Athena
Price: 4.50 (5.40 Including VAT at 20%)



Quantity:






Yamaha RD125LC EBC Clutch Kit

Yamaha RD125LC EBC Clutch Kit

Set Of Clutch Friction Plates To Fit The Yamaha RD125LC Fits 1982-1987 MK 1,2 and 3
Price: 24.39 (29.27 Including VAT at 20%)



Quantity:






Yamaha RD125LC Clutch Tab Washer

Yamaha RD125LC Clutch Tab Washer

Clutch Tab Washer To Fit The Yamaha RD125LC All Years MK1, Mk2 And Mk3 YPVS

Yamaha Part Number 90215-1221
Price: 2.52 (3.02 Including VAT at 20%)


Quantity:






Yamaha RD125 LC Clutch Springs

Yamaha RD125 LC Clutch Springs

Set Of Heavy Duty Clutch Springs To Fit The Yamaha RD125 LC 1982-1987 Mk1, 2 and 3
Price: 7.94 (9.53 Including VAT at 20%)



Quantity:
